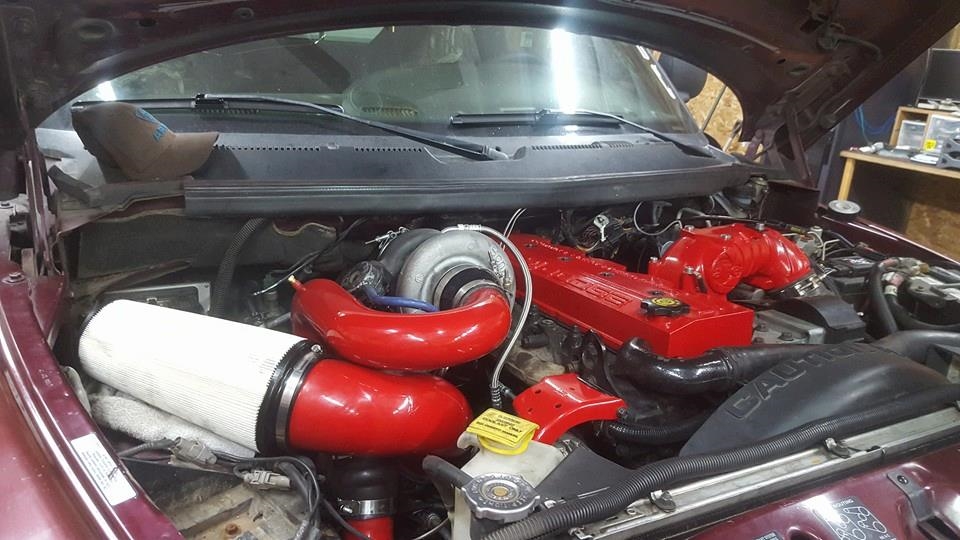

This is our 2/3 kit for 99-02 24V Dodge Cummins. It makes the transition to compound (twin) turbos easy. You use your HX35 stock turbo and 24V stock or 2nd Gen stock geometry T3 manifold, and we supply the rest. These kits take the guess work out of selecting the right combo and perform amazing. No more staring at your EGT gauge or smoking out the neighborhood. Get better MPGs from increased efficiency as well. These kits are easy to install and a joy to drive. You do not have to move your AC, batteries, or even the auto heat exchanger! Get tire roasting, load pulling, worry free performance right out of the box!
*head studs and transmission/clutch upgrades are recommended to match available power range.
 Includes all parts needed (see list), PLUS a new billet wheel S472/83/1.10 T6 turbo. This turbo pairs ideally with your stock turbo, and with proper fueling is rated from stock up to 600hp. Great for street or towing.
This kit will come with a new
472 83/1.10 T6 turbo with upgraded internals, billet wheel and covers by Forced
Inductions and a 6-month warranty.

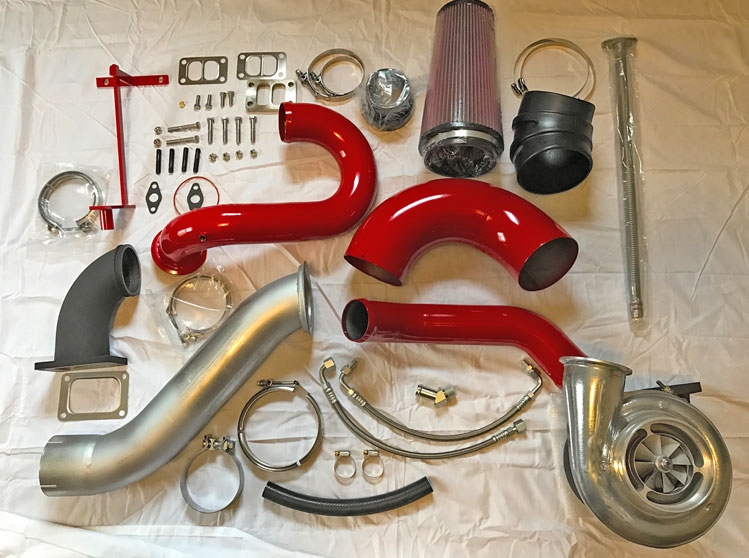

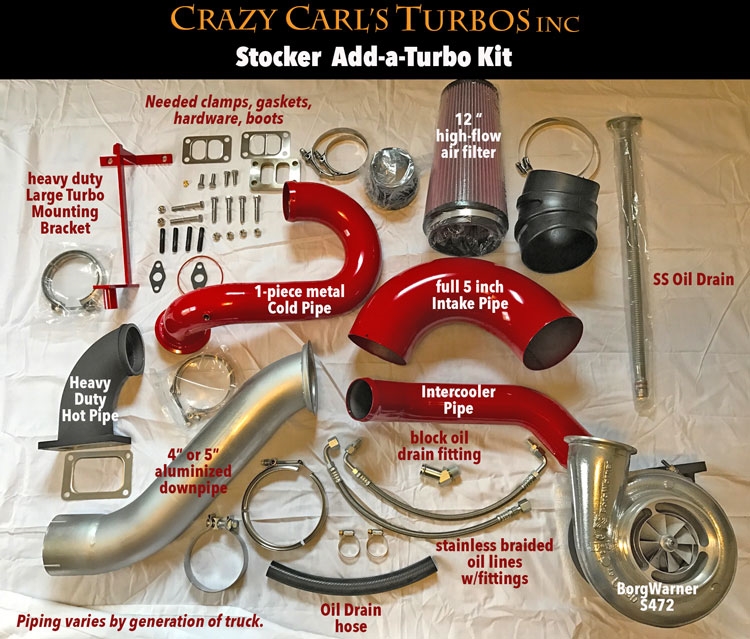

Kit includes:
Heavy duty hot pipe (regular hot pipe coated in high heat ceramic paint)
1-piece metal cold pipe,
Intercooler pipe,
Full 5" intake pipe,
4" or 5"* down pipe,
Stainless top and bottom turbo oil feed lines,
Top and bottom turbo oil drain lines,
Billet block or pan drain fitting,
Bottom turbo support bracket,
Top turbo spacer plate,
Quality name-brand large high flow filter,
SS Vband clamps,
SS T-bar clamps,
Quality powder-coating - choose from more than a dozen colors
Gaskets, hardware and basic instructions.
These year stock HX35s typically have a wastegate mounted on the compressor and ship with our spring gate controller.
-
As you'd expect, 5 inch downpipes are a tight fit, due to variations
in trucks you may need need to modify your firewall slightly.
We
powder coat in-house and prefer all kits to be powder-coated for the
longevity of the product. We will send kits bare but encourage you to
get them coated. There is no cost difference for getting your piping
uncoated.
***These kits are custom made to order and may take a week or so to ship.*****
|
|
|
 |
|
 |
|
